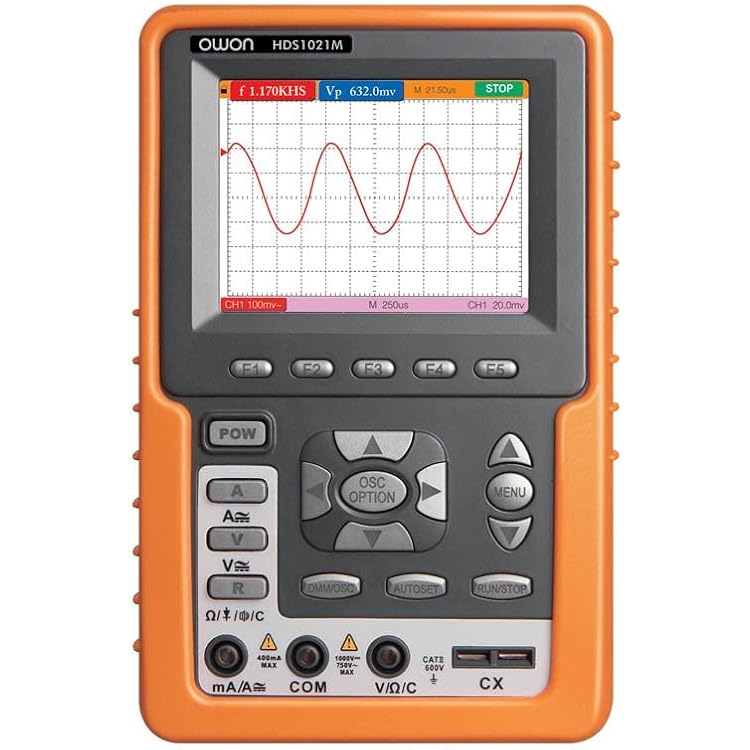

MON437 Handheld Digital Oscilloscope

Bandwidth: 20MHz -- Sample rateReal time: 100MS/s -- Horizontal ScaleS/div: 5ns/div100s/div, step by 12.55 -- Rise time at input, typical: =17.5ns -- Channels: Single -- Display 3.5 color display with TFT panel 320 240 pixels -- Input impedance: 1MO 2%in parallel with 18pF 5pF -- Probe attenuation factor: 1X, 10X, 100X, 1000X -- Max. input voltage: 400V DC + AC PK-PK, 1MO input impedance, Probe attenuation 10:1 -- DC gain accuracy: 3% -- DC accuracyAverage: Average=16: 3% reading+0.05div for ?V -- Probe attenuation factor: 1X, 10X, 100X, 1000X -- LF respondAC, -3dB: =5Hzat input, AC coupling, -3dB -- Record length: Max.6000 points for each channel -- Interpolation: sin x/x -- Input coupling: DC, AC, GND -- Acquisition modes: Sample, Peak Detect and Average -- Vertical resolution A/D: 8 bit -- Vertical sensitivity: 5mV/div5V/divat input
