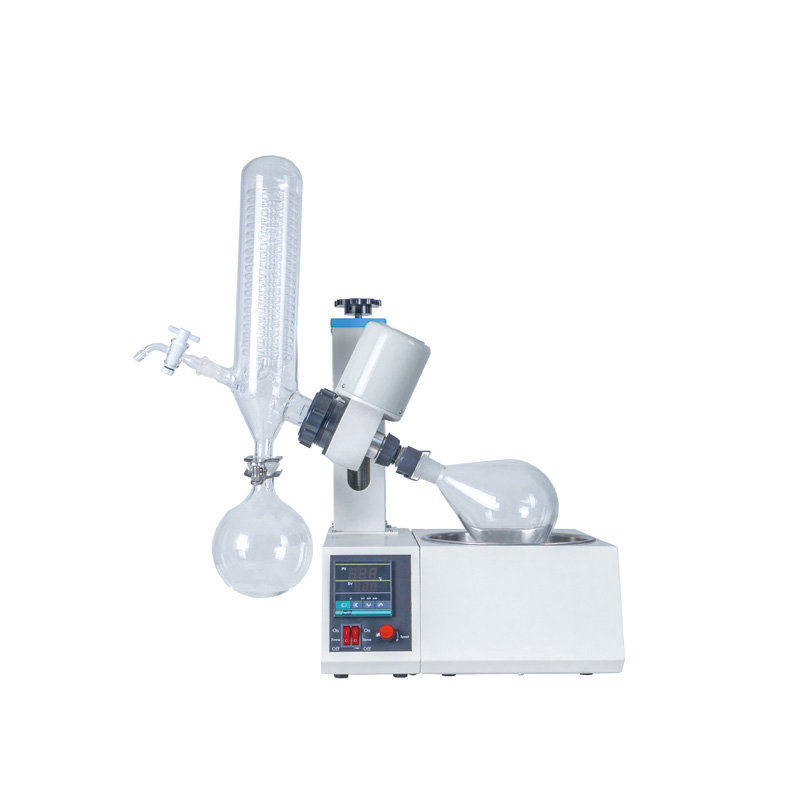

MON066 ROTARY EVAPORATOR

Technical Parameters: Model RE-2000A RE-2000B RE-2000E RE-52A RE-52C RE-5299 Rotary Bottle 1L 24#(Standard size) Collecting Bottle 1L 35#(Ball mill mouth) 0.5L 24#(Standard size) Condenser Vertical φ85*430mm Vertical φ85*450mm, 29#(Standard size) Charging Valve 19#(Standard size) 19#(Standard size) Rotating Speed 0~200rpm 0~120rpm Vacuum -0.098Mpa Temp. Range RT~99℃ Temp. Accuracy ±1℃ Stroke Height 120mm 150mm Rotating Power 40W 30W Heating Power 1.5KW 1KW Shelf Material Aluminum alloy Powder coating anticorrosive Chamber Size φ235*145mm φ220*120mm φ245*140mm Power Supply Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz External Size(W*D*H) 630*400*690~810mm 640*430*860~1010mm 660*440*880~1030mm Package Size(W*D*H) 620*620*490mm 600*460*470mm Gross Weight 25kg 23kg 19kg 20kg 20kg Standard Accessory 1000ml rotary bottle*1, 500ml recycling bottle*1 Optional Accessory Transparent bath cover, Vacuum pump, Recirculating chiller Transparent bath cover, Vacuum pump, Recirculating chiller
